Inter row cultivator GELIO

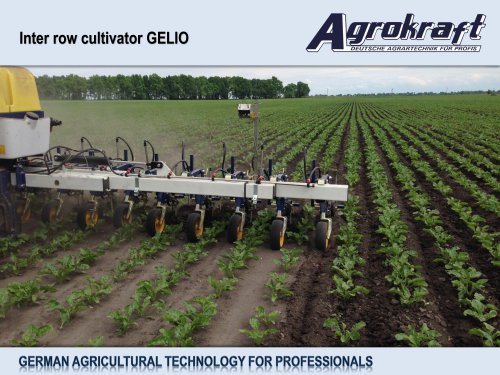

Inter row cultivator GELIO Inter-row cultivator GELIO with a variable row spacing from 10-15cm to 75cm or more is designed to care of a wide variety of crops: corn, sunflower, soybeans, beets, wheat etc. Parallelogram maintenance of the depth of processing on each row. Setting the depth of processing with the help of a control spindle. Active precision guidance system helps to avoid undercut the line of crops. High clearance of the frame up to 800 mm and smooth adjustment of the row spacing. Hydraulic folding from the tractor cab. Resistant to clogging tools ensure a good work even with strong...

Inter row cultivator GELIO ^DEUTSCHE AGRARTECHNIK FUR PROF/S / The universal frame allows you to use the machine as a rotory cultivator STERN, shedders croop residues TURBO, spring tooth harrow striegel TOR, seeder VELES or two-lane seeder VELES-2 for the seeding of all types of cereals, rape seed and soy beans. •3-point linkage supports the frame from below and ensures the stable work of the cultivator. • The mecanical guidance system with iron (or rubber) wheels allows the cultivator to follow the tractor precisely and cultivate very close to the rows without undercut the plants.

Inter row cultivator GELIO ^DEUTSCHE AGRARTECHNIK FUR PROF/S / • Each parallelogram of the cultivator is mounted on the frame with a single bolt. The bolt provides a very easy adjustment of the inter-row distance. •The depth adjustment is carried out with the help of the control spindle of the rotary wheel on the parallelogram, which makes it possible to copy accurately the soil relief and guarantes a constant depth of cultivating. •Aspecial wide suppor twheel allows you to work even in highly moist soil without sticking of the ground.

Inter row cultivator GELIO Arrangement of the inter row cultivator GELIO: Working group GELIO-K: there are 2 S-spring tines and 3 spring vibro-tines with 150 mm sweeps in this working group. It is possible to use this working group universally for all kinds of crops, if you remove 2 S-Spring tines and adjust the row distance. Optionally: The sweeps can be used with the width of 200mm or 250mm.

Inter row cultivator GELIO Arrangement of the inter row cultivator GELIO: Working group GELIO-S: there are 3 spring vibro-tines with 150 mm sweeps in this working group. Optionally: The sweeps can be used with the width of 200mm or 250mm.

Inter row cultivator GELIO ^DEUTSCHE AGRARTECHNIK FUR PROF/S / Working group GELIO-R: there are 8 loosening starts and 1 tine with 150 mm sweeps in this working group. The stars can be regulated in two dimensions and allow you to work either for hilling or for loosening between the rows. Optionally: The sweep can be used with the width of 200mm or 250mm. Optionally: each working group can be mounted with 2 S-tines with the sweeps 150mm, 200mm or 250mm.

Inter row cultivator GELIO Arrangement of the inter row cultivator GELIO: Working group GELIO-P: there are 5 S-spring tines with 150 mm sweeps in this working group. It is possible to use this working group universally for all kinds of crops, if you remove 2 S-Spring tines and adjust the row distance. Optionally: The sweeps can be used with the width of 200mm or 250mm.

Inter row cultivator GELIO ^DEUTSCHE AGRARTECHNIK FUR PROF/S / Working group GELIO-U: there are 2 adjustable angle blades in this working group.

Inter row cultivator GELIO Optional equipment for the inter row cultivator GELIO: Protective discs with a diameter of 430 mm provide a good protection for the plants in the initial phase of grow. Protective shields protect the plants from undercutting. The Comb harrow can be used for the loosening inside the row of cultivated plants.

Inter row cultivator GELIO Optional equipment for the inter row cultivator GELIO: The GELIO cultivator can optionally be equipped with the LINUS system for input of liquid fractions in the inter-row or in the row, as well as on the leaf surface. The system GINUS can be used for input of granular fertilizers in the inter-row or under the sweeps during the cultivating.

Inter row cultivator GELIO

Inter row cultivator GELIO Description and structure of the granular fertilizer application system GINUS • A tank can have a capacity of 800 l / 1000l or 2000l depending on the frame type of the cultivator. The turbine is driven by a hydraulic motor mounted on the bunker from the hydraulic system of the tractor. Constant rate of application, regardless of the tractor speed, is kept by adjustment and control of the rate of introducing through the spore wheel. The distribution hats have the possibility of reequipment, by closing of the outputs. The system for fertilizer application with the working...

Inter row cultivator GELIO Gear of the dosing device: mechanical, Accord system, the norm of application is adjustable from 1 to 199kg/ha.

Inter row cultivator GELIO Dosing unit is made of stainless steel and resistant to chemical substances

Inter row cultivator GELIO There are several opportunities of application of granular fertilizers in the soil: spreading on the surface before or after tillage, application in a row or row spacing, or in the soil under the sweeps.

Inter row cultivator GELIO

Inter row cultivator GELIO

Inter row cultivator GELIO Liquid fertilizers are now widely used in agriculture and allow to increase the quantity and quality of the crop. Depending on the tasks facing the economy, in addition to liquid fertilizers, herbicides or insecticides are used. For rational use of agro technical terms, reduction of time, economy of labour and fuel resources, application of liquid fertilizers, herbicides or insecticides is recommended to be combined with other agro technical measures.

Inter row cultivator GELIODescription and structure of the liquid fertilizer application system LINUS-600 • Electric pump drive. • The main tank for liquid fertilizers is 600 liters. • Rinsing tank 50 liters. • Control system for automated dosage.
