Agrivoltaic Fixed Structures

Product catalog summary

Specifications
The structure is designed with sufficient tolerances for easy assembly, allowing for great adaptability to high slopes and maximum surface use. It is made from materials S355JR and S350GD with superficial quality HDG and ZM310. The foundation options include direct ramming, predrilling, micropile, and screws with zinc-nickel or HDG coating, ensuring a minimum quality of 8.8. Module fixing can be done with stainless screws or rivets, and the design is adaptable to each client and location with configurations such as 2P, 3P, 4P, 2H, 3H, etc.

Procedures
The structure allows for high flexibility and minimal maintenance, with components developed for this purpose. The design and calculation are adapted to each client and location, ensuring high adaptability to the ground and all possible module tilts.

Norms and Tolerances
The fixed structure has specific tolerances: Foundation N-S tolerance of ± 30mm, E-O tolerance of ± 50mm, vertical tolerance of ± 20mm, and inclination tolerance of ± 1.5º.

Warranty and Optional Services
The structure comes with a 10-year warranty and a 25-year corrosion warranty. Optional services include assembly supervision and pull-out test supervision.

Recomendations
The design is sustainable, aiming for a better future, and is highly adaptable to client requirements.

Catalog excerpts

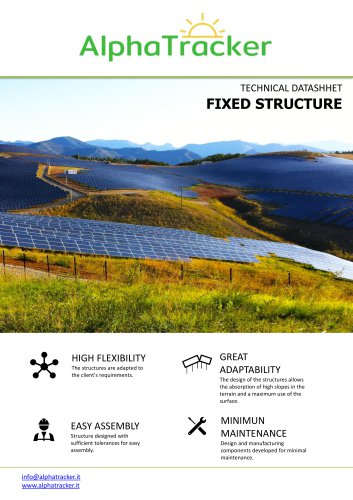

TECHNICAL DATASHHET FIXED STRUCTURE HIGH FLEXIBILITY The structures are adapted to the client's requirements. EASY ASSEMBLY Structure designed with sufficient tolerances for easy assembly. [email protected] www.alphatracker.it GREAT ADAPTABILITY The design of the structures allows the absorption of high slopes in the terrain and a maximum use of the surface. MINIMUN MAINTENANCE Design and manufacturing components developed for minimal maintenance.

Open the catalog to page 1

FIXED STRUCTURE Direct ramming Predrilling Zinc-NIquel, HDG Minimun 8.8 quality Stainless Screws or Ribets Adapted to each client and location Configuration 2P, 3P, 4P 2H, 3H... According s client requeriment TECHNICAL CARACTERISTICS Foundation N - S tolerance • Assembly supervision • Pull Out Test Supervision ± 50mm Foundation vertical tolerance ± 20mm WARRANTY • 10 years of structure Foundation inclination tolerance

Open the catalog to page 2
