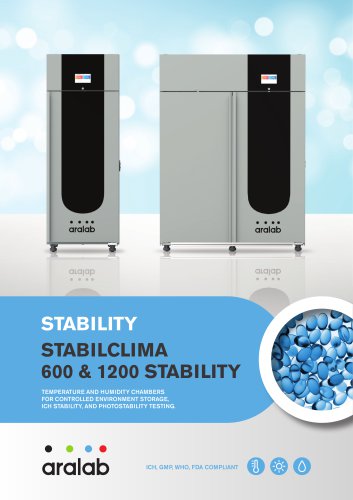

◦Lajap dLqap STABILITY STABILCLIMA 600 & 1200 STABILITY TEMPERATURE AND HUMIDITY CHAMBERS FOR CONTROLLED ENVIRONMENT STORAGE, ICH STABILITY, AND PHOTOSTABILITY TESTING.

ARALAB is a company specialized in designing, developing, manufacturing and servicing of high quality climatic chambers and controlled environment rooms. Since 1985 we have been perfecting ways to create and control temperature, humidity, light, air flow and many other environmental conditions. Only the highest quality components are used to manufacture our chambers so customers can have the best equipment for their research and testing purposes. StabilClima Stability and Photostability Testing chambers provide the environmental control and flexibility to meet the evolving needs of customers...

| Temperature and humdity control range ^ ICH Q1A Long Term, Intermediate and Accelerated testing conditions • • • • STABILITY MODELS REFERENCE - STANDARD CONTROLLED ENVIRONMENT VARIABLES STABILCLIMA 600/1200 P [1] Temperature and Humidity uniformity performances in Stability Testing chambers according to IEC60068-3-5/6. The Photostability testing model temperature range with lights on is 50C to 450C and will present greater variations in temperature and humidity uniformity due to heat dissipation from lamps [2] Additional shelves can be fitted (600 model - up to 10 shelves; 1200 model - up to...

STABILCLIMA 600 PLH / PLH-R Developed to simulate and automatically reproduce the conditions required by the ICH Q1B Option 2 guideline for Photostability Testing. Visible and UV light banks are independently controlled. On PLH model intensity is controlled by % and does not include sensors to measure accumulated light exposure. On the PLH-R model, both UV and Visible light trays have integrated light sensors allowing a correct measurement of instantaneous and accumulated light exposure according to traceability standards. In the PLH-R version (with UV and Visible radiometers integrated with...

EXTERNAL DIMENSIONS (HxWxD) (mm) INTERNAL DIMENSIONS (HxWxD) (mm) MINIMUM CLEARENCE REQUIRED E REQUIRED MINIMUM CLEARENCE Updated drawing Standard refrigeration system is air cooled. Electrical cabinet installation needs: Services hub installation needs: C ¾” male demineralized water supply valve. Supply power: 230VAC, 50Hz (60Hz upon request), 12A / Single Phase Electrical protection: Circuit breaker 16A + N with 30mA differential. In case of reverse osmosis/cylinder (optional): Equipment weight: 170Kg (approx.). ¾” male tap water valve connection. Average heat dissipation: 0,3 kW. Power Supply...

1. Standard refrigeration system is air cooled. (-20oC model is water cooled. See point 5.) 2. ® Services hub installation needs: 0 %” male demineralized water supply valve. In case of reverse osmosis/cylinder (optional): %” male tap water valve connection. 0 20mm water drain at floor level, female connection. 3. 0 Electrical cabinet installation needs: Supply power: 230VAC, 50Hz (60Hz upon request), 13A / Single Phase + Neutral + Ground. Electrical protection: Circuit breaker 16A + N with 30mA differential. 0 RJ45 communication port. Average Heat dissipation: 0,5 kW. 4. Equipment weight: 240Kg...

EQUIPMENT DESCRIPTION CONSTRUCTION & CONTROL Multi-color 7-inch touch-screen ClimaPlus© controller. Open door alarm with configurable time-out function. Highly resistant stainless-steel. Polyurethane insulation. Exterior zinc plated steel and gray epoxy paint. Pivoting door(s) with spring lock, magnetic gasket and safety lock(s). 4 and 5 built-in casters brakes. Entry port Ø80mm. ENVIRONMENTAL CONTROL Air-cooled mechanical refrigeration by hermetic compressor. StabilClima 1200 with -20ºC upgrade is water cooled. Dual heating technology with hot gas by-pass and stainless steel electric heaters....

• Programmable Logic Controller exclusively developed by Aralab for StabilClima chamber, • Multi-language, easy-to-use touch-screen interface (EN, FR, DE, IT, PT, ES and other languages on request), • 90mm x 155mm (7 inch) multicolor display, • Controls every environmental variable available for any specific StabilClima model (Temperature, Humidity, Lights, Airflow, C02, and connected external devices), • Friendly program editor for creating 32 programs of 24 segments each, allowing the design of complex and comprehensive climatic simulation programs, • In the PLH-R version (with UV and Visible...

FITOLOG SOFTWARE GAMP 5 The FitoLog software pack - FDA 21 CFR part 11 and Eudralex compliant according to GAMP5 risk based approach - is a set of applications designed to facilitate the programing, monitoring, managing and recording of programs and data from the StabilClima chambers. It consists of 3 applications: FitoLog, FitoLogView and FitoProgram. FITOLOG Displays and records in real time all data and details related to the set-points, running variables and equipment behaviour. It also retrieves information about the active components of the chamber, running processes, errors, alarms and...

COMMON ACCESSORIES PLEASE CONSULT ARALAB FOR OTHER ITEMS FitoLog® software pack for PC/Laptops, enabling data monitoring, logging and managing operations d irectly on a computer – FDA 21 CFR part 11 and Eudralex compliant according to GAMP5. IQ, OQ, PQ procedures and documentation. ISO 17025 Temperature and Humidity calibrations. Additional stainless steel wire shelves. Additional lateral entry port. Reinforced stainless steel shelves for heavier test specimens. 20 liter water tank with electric pump and security valve. Conductivity meter, for water quality control. 5 stage Reverse Osmosis with...
