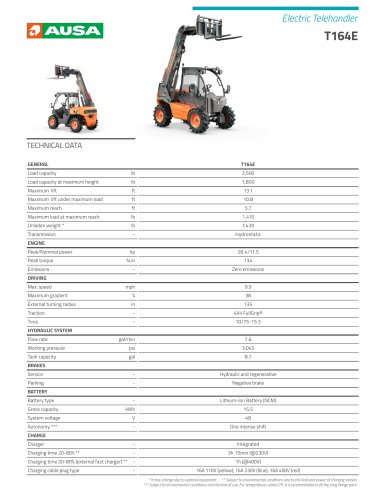

T164E
T164E
- Model: T164E Electric Telehandler
- Load Capacity: 3,500 lb
- Load Capacity at Maximum Height: 1,800 lb
- Maximum Lift: 13.1 ft
- Maximum Lift Under Maximum Load: 10.8 ft
- Maximum Reach: 5.7 ft
- Maximum Load at Maximum Reach: 1,415 lb
- Unladen Weight: 7,430 lb
- Transmission: Hydrostatic
- Peak/Nominal Power: 28.4/11.5 hp
- Peak Torque: 134 N.m
- Emissions: Zero emissions
- Max Speed: 9.9 mph
- Maximum Gradient: 38%
- External Turning Radius: 135 in
- Traction: 4X4 FullGrip®
- Tires: 10/75-15.3
- Flow Rate: 7.6 gal/min
- Working Pressure: 3,045 psi
- Tank Capacity: 8.7 gal
- Service: Hydraulic and regenerative
- Parking: Negative brake
- Battery Type: Lithium-Ion Battery (NCM)
- Gross Capacity: 15.5 kWh
- System Voltage: 48 V
- Autonomy: One intense shift
- Charger: Integrated
- Charging Time 20-80%: 3h 15min (@230V)
- Charging Time 20-80% (External Fast Charger): 1h (@400V)
- Charging Cable Plug Type: 16A 110V (yellow); 16A 230V (blue); 16A 400V (red)
- Various dimensions and angles are provided, indicating the compact and versatile design of the telehandler.
- Products are subject to modifications without prior notice.
- Images may refer to non-standard machines or configurations.
- For temperatures under 0ºC, it is recommended to fit the Long Range pack.
Catalog excerpts
Electric Telehandler TECHNICAL DATA GENERAL Load capacity at maximum height lb Maximum lift under maximum load ft Maximum load at maximum reach lb Maximum gradient % External turning radius in Zero emissions HYDRAULIC SYSTEM Flow rate Working pressure Tank capacity BRAKES Service Parking Battery type Gross capacity System voltage Autonomy *** CHARGE Negative brake Charging time 20-80% (external fast charger) ** - Charging cable plug type - * It may change due to optional equipment ** Subject to environmental conditions and to the kind and power of charging station. Subject to environmental conditions and the kind of use. For temperatures under 0°C it is recommended to fit the Long Range pack.
Open the catalog to page 1
Universal carriage Products are subject to modifications without prior notice. Images throughout the spec sheet may refer to non-standard machines or non-available configurations depending on models. AUSA’s logo and corporate identity are property of the Company, they cannot be used without authorization. MKCAT.T164E.US.0125
Open the catalog to page 2All Ausa catalogs and technical brochures
Agricultural catalogue17 Pages

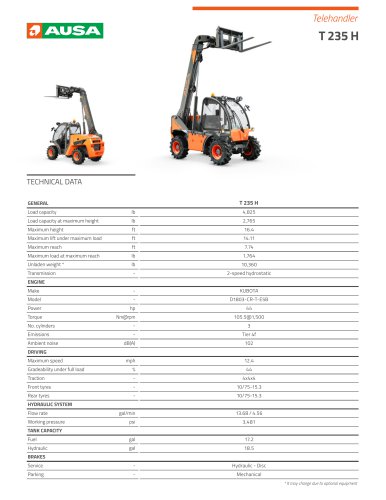

T235H2 Pages

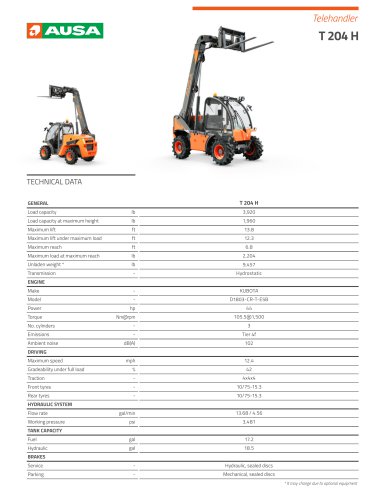

T204H2 Pages
