Tray Covering Unit

Product catalog summary

Overview
The BCC Tray Covering Unit is designed to create a conducive micro-climate for seed germination by covering trays with a uniform layer of material post-sowing. This layer aids in moisture retention and seed protection, while also preventing excessive algae and moss growth.

Process Description
A sensor detects incoming trays, triggering an adjustable timer that controls the feeding belt's operation. This ensures precise material application and minimizes spillage. The material hopper, equipped with adjustable sides and a gate, allows for control over the thickness and width of the material layer, adaptable to different tray types.

Operational Benefits & Key Features

Ensures even germination through uniform layer application.
Adjustable gate for layer thickness control.
Adjustable sides for width control, accommodating various tray types.
Sensor-activated flow to reduce spillage.
Versatile use, including mycorrhiza application in substrates.

Accessories and Extra Features
The unit includes a media feeding belt for material transfer to the hopper and can be customized for specific needs.

Technical Data

Dimensions: 950mm x 850mm x 1750mm (variable with conveyor height).
Weight: 85Kg.
Power Requirement: 0.18kW, 3 x 400V, 50Hz.
Production Capacity: HIKO trays - 24/min, SideSlit trays - 18/min, 96 Insert Frame trays - 10/min.

Contact Information
BCC AB, Profilgatan 15, 261 35, Landskrona, Sweden. Tel: +46 418 449920, Fax: +46 418 449922, Email: [email protected], Website: www.bccab.com

Catalog excerpts

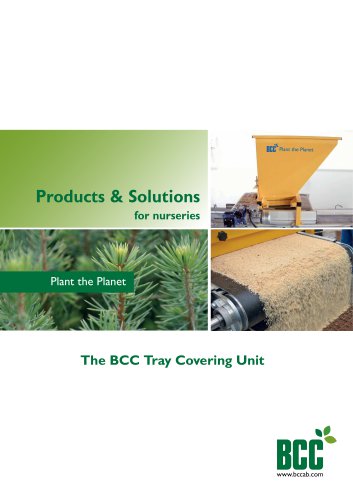

Products & Solutions for nurseries The BCC Tray Covering Unit

Open the catalog to page 1

hopper is fitted with adjustable sides substrate hopper is mounted over the feeding belt application of a uniform layer for even germination adjustable gate to determine thickness BCC Tray Covering Unit To create a cool and moist micro-climate conducive to seed germination, seed is covered with a layer of material after the sowing process. This layer also protects the seed during the germination phase. Mulching material is sometimes used to physically hold the seed in place and prohibit excessive growth of algae and moss. The BCC Tray Covering Unit is used to cover trays with a thin and uniform...

Open the catalog to page 2

cover trays with a thin and uniform layer of material after sowing OPERATIONAL BENEFITS & KEY FEATURES • • • • • Application of a uniform layer for even germination. Adjustable gate to determine thickness of layer applied. Adjustable sides to control width of layer applied for different tray types. Flow activated through a sensor to minimise spillage. Can also be used for other applications including application of mycorrhiza in the substrate. ACCESSORIES AND EXTRA FEATURES Media feeding belt to transfer material to hopper

Open the catalog to page 3

TECHNICAL DATA Dimensions (L x W x H): 950mm x 850mm x 1750mm (depending on height of conveyor belt) Weight: 85Kg Power requirement: 0.18kW Power supply: 3 x 400V, 50Hz Maximum production capacity: HIKO (350mm x 216mm, fixed tray): 24 trays/minute SideSlit (385mm x 385mm, fixed tray): 18 trays/minute 96 Insert Frame (517mm x 350mm, single cell tray): 10 trays/minute * The precision seeder is a standalone unit mounted over a conveyor belt * The equipment can be customized to meet individual requirements BCC AB, Profilgatan 15, 261 35, Landskrona, Sweden, www.bccab.com, [email protected] Tel: +46 418...

Open the catalog to page 4
