HBRD CCT SWITCH
1 / 1 PageView full catalog
HBRD CCT SWITCH
Product catalog summary
Product Overview
A simple and elegant waterproof luminaire designed for agricultural, commercial, warehouse, and industrial buildings. It offers excellent heat dissipation and allows for different wattages and color temperatures, contributing to energy and maintenance cost savings. An optional motion sensor is available.
Specifications
Technical Details
Certifications
A simple and elegant waterproof luminaire designed for agricultural, commercial, warehouse, and industrial buildings. It offers excellent heat dissipation and allows for different wattages and color temperatures, contributing to energy and maintenance cost savings. An optional motion sensor is available.
Specifications
- Product Codes: HBRD150WCCT-S, HBRD240WCCT-S
- Design: Round pendant luminaire with LED HIGHBAY and 2 meters of cable
- Structure: Die-cast aluminum housing with high-efficiency heat dissipation, providing uniform and soft light
- Options: Eyelet, Hook, Chain, Pnp Sensor (covering 13-40 feet)
- Dimensions: 11.37"x 6.90" (6lbs) and 13.10"x 7.38" (7lbs)
- Washability: Washable with up to 1500 PSI steam pressure at temperatures up to 200°F
Technical Details
- LED Diode Brand: 2835 LUMILEDS
- Consumption: 100W, 125W, 150W, 200W, 240W
- Light Power: 14,000 lm to 33,600 lm
- Luminous Efficiency: 140 lm/W
- Dimmable: Yes
- Color Temperature: 3500K / 4000K / 5000K CCT switch
- Color Rendering Index: ≥80
- Beam Angle: 110°
- Flicker: 4% non-visible light
- Water Protection Index: IP 65
- Impact Protection Class: IK 08
- Power Factor: >0.9
- Total Harmonic Distortion (THD): <20%
- Maximum Ambient Temperature: -40°C to +45°C
- Supply Voltage / Frequency: 100/347V / 50/60Hz
- Lifetime / Warranty: ≥ 50,000 hours / 5 years
Certifications
- Version 5.1
See more
Catalog excerpts
A simple and elegant looking waterproof luminaire with good heat dissipation allowing different wattage and color temperature. Excellent for agricultural, commercial, warehouse and industrial buildings. It will allow you to make considerable savings in both energy consumption and maintenance costs. Motion sensor available as an option. CBM Lighting Inc. Tel.: 450-777-284882, Irwin Street, Unit 3 [email protected] Granby (Quebec) Canada www.cbmlighting.com J2J 2P1
Open the catalog to page 1All CBM Electronics Lighting, Inc. catalogs and technical brochures
SCR FS Series1 Page
SCR B Series1 Page
AWC LED BOARD Series1 Page
VP4 CCT Series1 Page
SENTINEL Series2 Pages
LWP Series1 Page
PL Series1 Page
DTI Series1 Page
ECO Dimmer Series1 Page
DTD-LUMIX Series1 Page
HB69 LED Board Series1 Page
TL H Series1 Page
TL VR Series1 Page
HB RD Series1 Page
STRIP LIGHT Series2 Pages
Orbis Series1 Page

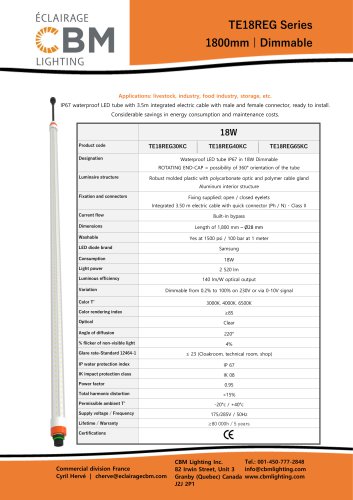

TE18REG1 Page

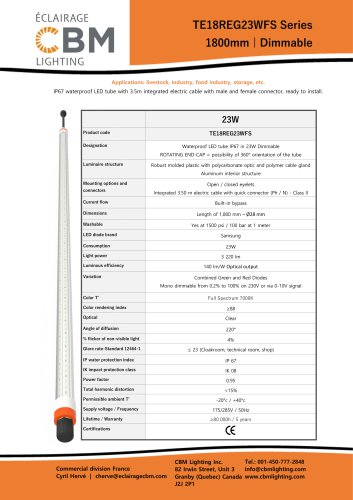

TE18REG23WFS1 Page
CBM Series1 Page

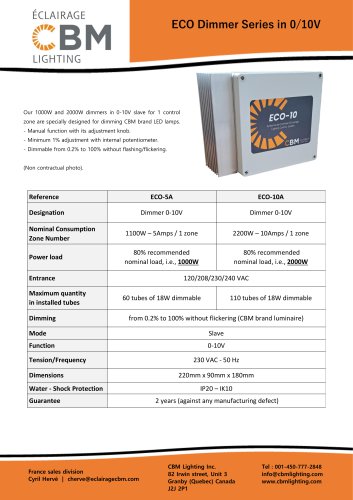

ECO series1 Page

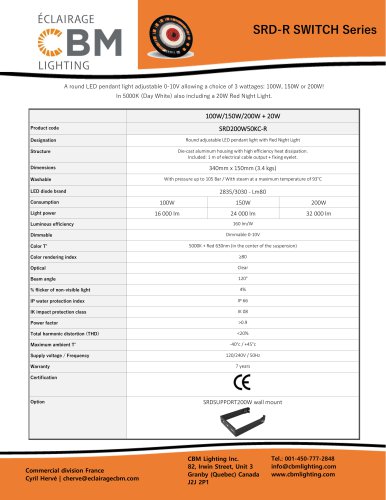

SRD200W50C-R2 Pages
TE15NR1 Page
TE12NR1 Page

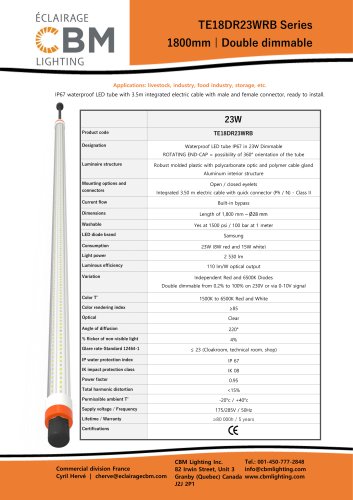

TE18DR23WRB1 Page

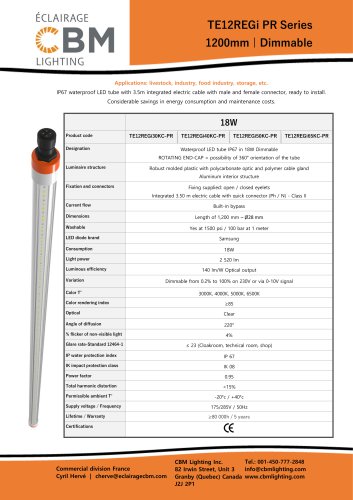

TE12REGi PR1 Page

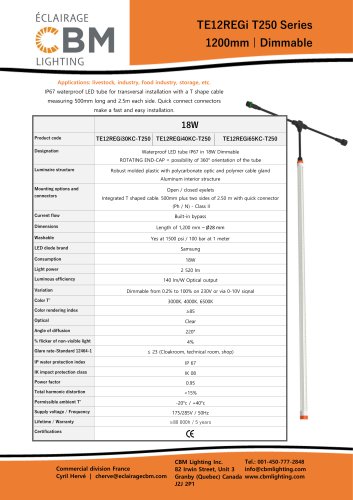

TE12REGi T2501 Page
DTD Series1 Page
TE12REGi Series1 Page
CBM Lighting 20258 Pages

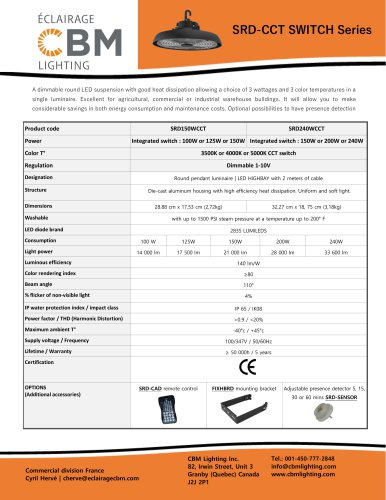

SRD-CCT series1 Page
