Powerhand GT Log Sorting Grapple

Powerhand GT Log Sorting Grapple
1 / 1 PageView full catalog

Powerhand GT Log Sorting Grapple

Product catalog summary
Overview: The GT Series Log Sorting Grapple, produced by Powerhand, is the smallest grapple in their sawmill range, designed for efficient log sorting and handling. It is trusted by major sawmills across Europe.
Specifications:
  • Capacity: Ranges from 0.15m² to 0.2m².
  • Models: GT-15 and GT-20.
  • Weight: 220 kg for GT-15 and 240 kg for GT-20 (excluding rotator).
  • Jaw Opening: 1010 mm for GT-15 and 993 mm for GT-20.
  • Overall Opening: 1100 mm for GT-15 and 1137 mm for GT-20.
  • Open Height: 854 mm for GT-15 and 903 mm for GT-20.
  • Tip to Tip Height: 860 mm for GT-15 and 909 mm for GT-20.
  • Minimum Gripping Diameter: Ø56 mm for GT-15 and Ø54 mm for GT-20.
  • Maximum Gripping Diameter (Tip to Tip): Ø377 mm for GT-15 and Ø415 mm for GT-20.
  • Clearance: 415 mm for GT-15 and 450 mm for GT-20.
  • Overall Width: 416 mm for both models.
  • Width at Tips: 244 mm for both models.
Design Features: The GT grapple features a narrow, finger-like tine design for penetrating stacked materials and a fast-action leg mechanism for efficient log line movement. It is particularly effective for sorting misaligned logs.
Contact Information: Powerhand, a division of Wm Clark and Son (Parkgate) Ltd, located in Parkgate, Dumfries, DG1 3NB. Contact via phone at +44 (0)1387 860 241 or email at [email protected]. More information is available at www.powerhand.com.
See more

Catalog excerpts

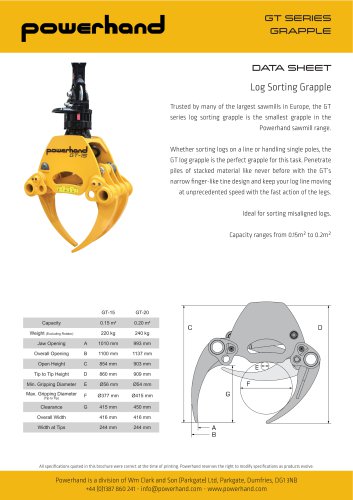

Powerhand GT Log Sorting Grapple-1

DATA SHEET Trusted by many of the largest sawmills in Europe, the GT series log sorting grapple is the smallest grapple in the Powerhand sawmill range. Whether sorting logs on a line or handling single poles, the GT log grapple is the perfect grapple for this task. Penetrate piles of stacked material like never before with the GT’s narrow finger-like tine design and keep your log line moving at unprecedented speed with the fast action of the legs. Ideal for sorting misaligned logs. Capacity ranges from 0.15m2 to 0.2m2 Weight (Excluding Rotator) 220 kg 240 kg All specifications quoted in this brochure were correct at the time of printing. Powerhand reserves the right to modify specifications as products evolve. Powerhand is a division of Wm Clark and Son [Parkgate] Ltd, Parkgate, Dumfries, DG1 3NB +44 [0]1387 860 241 - [email protected] - www.powerhand.com

 Open the catalog to page 1

All Clark Engineering catalogs and technical brochures

  1. Powerhand DK Timber Grapple
    Powerhand DK Timber Grapple

    1  Page

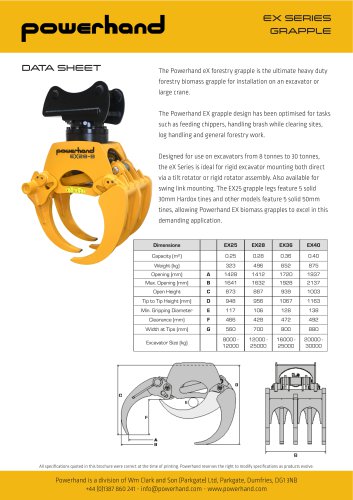

  2. Powerhand EX Forestry Grapple
    Powerhand EX Forestry Grapple

    1  Page

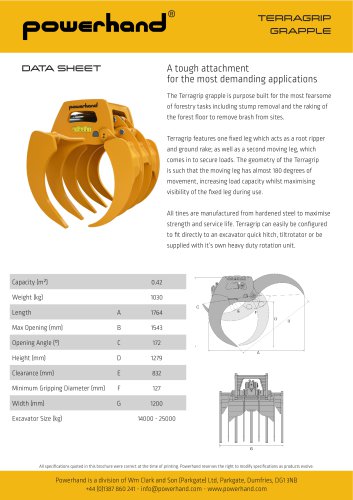

  3. Powerhand Terragrip Rake Grapple
    Powerhand Terragrip Rake Grapple

    1  Page

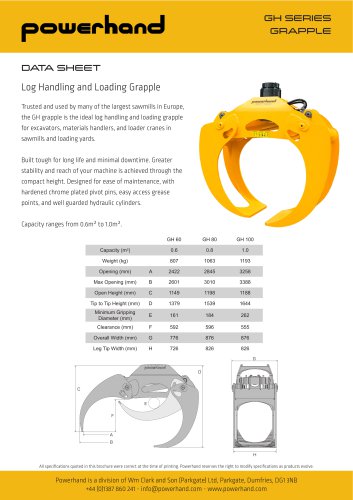

  4. Powerhand GH Timber Grapple
