Born in the 70’s of the past century, the brand Eurospand has always stood out with success for the special attention paid to produce and supply professional fertilizer spreaders characterized by structural sturdiness, precision of distribution, resistance to corrosion, continuous and constant technical innovation, making these features the core of its way of thinking. In 2001 OMB invented and produced the ”Vibro System”, a vibrating hopper bottom system that has been applied on all its production of double disc spreaders with great success since then. The plant covers an area of 8500...

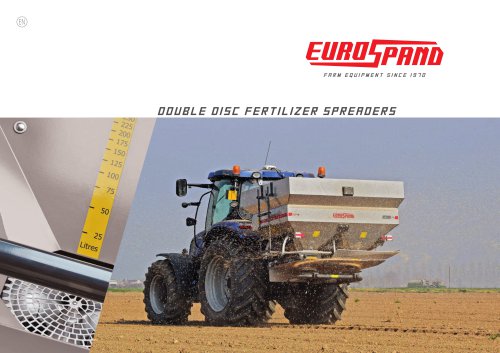

David, Delta, Jolly: the double disc fertilizer spreaders of the Eurospand brand, are the ideal aid for the correct and accurate distribution of mineral fertilizers, organic amenders and seeds. a cause of pollution: on the contrary it is indispensable help for better farming. VIBRO SYSTEM LATERAL FEEDING STAINLESS STEEL ANTI-CORROSIVE HYDRAULIC TREATMENTS OPENINGS ISOBUS SMART Vibrant hopper Bottom without agitator. Optimal distribution also un uneven grounds. Micrometric dosage and self-positioning of the launch angle. Protection of the fertilizer spreader gearbox. To last over time....

Grid for pelletized, powdered fertilisers and seeds (optional) Standard grids for mineral fertilisers VIBRO SYSTEM without agitator The system with vibrating hopper bottom that feeds continuously the distribution system. The non-use of agitators avoids the products crushing, assuring a uniform dosage of the chosen quantities, of granular, powdered and pelleted fertilizers and seeds. The stainless steel grids (available in two models) applied above the vibrating bottom retain the fertilizer lumps and maintain constant the fertilizer pressure on the feed system. VIBRO-SYSTEM solves the issues...

FERN EQUIPMENT SINCE I31U LATERAL FEEDING Feed the fertilizer laterally to the vane, means eliminating the breaking and pulverization of granules during distribution. The products are conveyed on the vanes with a progressive acceleration, creating a regular and continuous flow, also on uneven grounds, where the traditional systems with outflow of the fertilizer from above cannot assure transversal smoothness. Moulded vanes with patented profiles and a stainless-steel barrier above the spreading discs. Two of our winning choices ever for an optimal transversal distribution.

DOSAGE and DISTRIBUITION A system of automatic positioning optimises the entrance of fertilizer on the spreading disc depending on the dispensed quantity increase. It is possible to act manually on the the advance or delay of fertilizer release on the disc, to compensate for different physical features of fertilizers. PERFECT DISTRIBUTION WITH DOUBLE OVERLAP 120 The Eurospand APP calculates and provides the optimal opening to be set for a wide range of fertilizers and seeds. Shutters in stainless steel with variable-geometry openings allow to obtain an adequate dosage curve both for...

Fertilizer Spreader Protection system The Transmission Protection System avoids any damage to the transmission shafts when the PTO shaft does not have the correct length. The central box is anchored to the chassis through six rubber mountings that absorb anomalous bending borne by the input shaft. HYDRAULIC OPENING and CLOSING The hydraulic system requires 2 DE spool valves The independence of the circuit on the right or left is obtained directly from the control levers on the tractor. Quick coupling valve Quick coupling valve If you need to connect to tractors with a single DE distributor,...

measuring and ^^B distribution system, as well ^^B as all the bolts are made in ^^B stainless steel, guaranteeing a long ^^B operating life. ' All models can also be provided with stainless steel Detail of a dispensing shutter less steel parts

ANTI-CORROSIVE TREATMENTS All metal parts not in stainless steel are mechanically sandblasted in an automatic plant. The first powder application, and related firing at 220°C, of a galvanizing primer, protects the surface and improves the adherence of the final enamel. Final powdered enamel Powdered primer Sandblasted A second and final powder application of a enamel fired at 220°C guarantees an optimal finish. Three fundamental phases that Eurospand foresees for perfect corrosion resistance of their own fertilizer spreaders.

WEIGHT SYSTEM The required dosage is automatically adjusted according to the forward speed (Forward Speed Calibration) by means of two linear actuators. The versions “+W” with a double frame integrates two 5000 kg loading cells, that detect the real weight of the product in the hopper in a continuous way, reporting every fertiliser and every physical variation to a distribution curve in order to deliver the exact quantity per hectare required. Two magnetic sensors detect the exact opening of each shutter and control directly the linear actuators avoiding any possible position errors. A...

ISOBUS All double disc fertilizer spreader models can be equipped with an Isobus electronic management system. By connecting the machine via the Isobus ISO 11783 socket, it will be possible to manage all operations via the monitor installed on the tractor. The use of prescription maps allows the spreading of variable doses in the plot. The machine automatically adjusts the position of the dosing shutters based on the position of the tractor within the field to be treated. The machines are set up as standard for functioning with variable rate prescription maps, automatic section control and...

ISOBUS Automatic section control manages the automatic interruption of dispensing when passing over areas that have already been fertilized. The independent opening of the right and left side allows the automatic closing of the two sides in case of spreading on uneven terrain. Spreading is made easier and more practical thanks to the AUX-N function, which allows the use of the fertilizer spreader via the joystick on the tractor. Possibility of supplying an Isobus monitor for the setup of tractors that do not have one, compatible with all Isobus equipment (optional).
