Forestry trailer FB15D

Product catalog summary

Overview: This document provides technical specifications and features for the Forestry Trailer FB15D and Crane FB40L, designed for performance in forestry operations.

Forestry Trailer FB15D Specifications:

Max. Permitted Weight: 1,900 kg
Loading Capacity: 1,300 kg
Weight: 370 kg
Load Area: 0.7 m²
Load Length: 2.8 m
Frame Dimensions: 100 x 50 mm
Hydraulic Support Legs: Telescopic
Drawbar: Straight with hydraulic steering
Brakes: Not included
Parking Leg: Yes
Control Unit Holder: Yes
Bunks/Stakes: 2/4
Wheels: 10.0/80-12

Crane FB40L Specifications:

Reach: 4.0 m
Linkage System: Yes
Lifting Moment (Gross): 14 kNm
Lifting Moment (Net): 10.4 kNm at 4 m
Lifting Capacity at Max Reach: 265 kg
Lifting Capacity at 3m: 265 kg
Slewing Angle: 270º
Slew Torque: 2.2 kNm
Rotator: 1 ton without brake
Grapple Area: 0.09 m²
Weight: 230 kg
Oil Flow: 6-10 l/min
Working Pressure: 175 bar
Valve Block: 2 coordinates

Accessories:

Overrun brakes
Plywood floor lining
Independent hydraulic system
Hydraulic unit
Toolbox with cover
Chainsaw holder
Fuel tank holder with tank
Parking wheel
Drawbar upwards
Protective plate support legs
Additional pair of stakes
Protection for lifting cylinder
Valve block (3 coordinates)
Valve cover
Insert plates for brushwood

Contact Information: FTG Baltic UAB, Dūmų str. 3 K20, LT-11119 Vilnius, Lithuania. Website: www.ftgkallefall.com, Tel.: +370 5 246 23 18, Email: [email protected]

Catalog excerpts

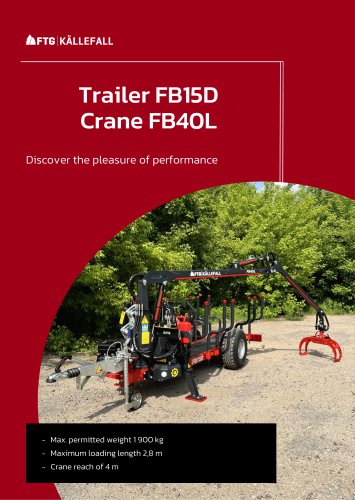

Discover the pleasure of performance Max. permitted weight 1 900 kg Maximum loading length 2,8 m Crane reach of 4 m

Open the catalog to page 1

Hydr. support legs telescopic Hydr. drawbar steering no Holder for control unit yes Lifting moment (gross), kNm 14 Lifting capacity at max reach, kg 265 Rotator link w/o brake Valve block 2 coord. Right to design changes reserved - * Weights may vary depending on equipment Dumq str. 3 K20 LT-11119 Vilnius Lithuania E-Mail: [email protected]
