Forestry trailer FB70

Product catalog summary

Overview: The FB70 is a compact forestry trailer designed for efficient transportation of firewood, pulpwood, and logs. It combines Swedish heritage with innovative design to offer robust performance in challenging terrains.

Specifications:

Maximum Permitted Weight: 9,000 kg
Loading Capacity: 7,000 kg
Maximum Loading Length: 4.4 m
Crane Reach: 5.1 m to 6.9 m
Frame: Single beam with bogie axle
Wheels: 11.5/80-15.3 with grooved profile
Optional 2-wheel drive with Black Bruin B240 hub motors

Features:

Hydraulic steering drawbar
Telescopic A-type support legs
Stable protective gates and eyelets for tension belts
Two pairs of bunks with four stakes
Wide range of accessories including protective plates, fuel tank holder, and operator platforms

Optional Equipment: The FB70 can be customized with various accessories such as independent hydraulic systems, parking legs, and different wheel profiles to meet specific user needs.

Technical Characteristics:

Load Area: 1.9 m²
Weight: 1,300 kg (may vary with equipment)
Frame Dimensions: 140x140 mm
Brake System Options: Hydraulic, overrun, air brakes

Suitable Cranes: The FB70 is compatible with several crane models including FB51L, FB53T, FB63T(S), FB69T, M65T, P52, P57, and P67T.

Contact Information: For more details, contact FTG Baltic UAB, Vilnius, Lithuania, or visit www.ftgkallefall.com.

Catalog excerpts

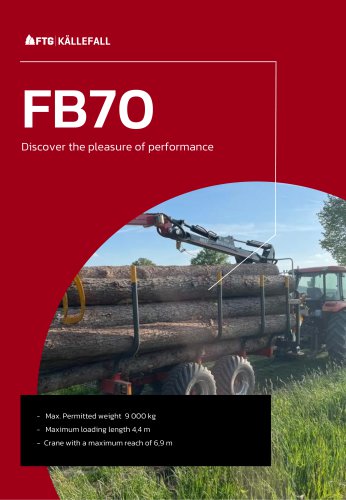

Discover the pleasure of performance - Max. Permitted weight 9 000 kg - Maximum loading length 4,4 m - Crane with a maximum reach of 6,9 m

Open the catalog to page 1

FTG KaUefaU forestry trailer FB70 has a loading capacity of 7 000 kg and a permissible total weight of 9 000 kg. FB70 is a compact forestry trailer with a crane range from 5,1 m to 6.9 m of reach. It is suitable for transporting firewood, pulpwood, and other logs. FB70 trailer has a single beam frame, bogie axle, stable protective gates, drawbar with hydraulic steering, telescopic A-type supports legs, eyelets for tension belt, 2 pairs of bunks with 4 stakes and tires 11.5/80-15.3 with grooved profile and valve protection. Trailer FB70 can also be equipped with a 2-wheel drive (Black Bruin, B240...

Open the catalog to page 2

* Dimensions may vary depenading on the equipment - Overrun with hydraulic Drawbar options

Open the catalog to page 3

FB70 accessories A picture containing outdoor, transport, lawn mower Description automatically generated Independent hydraulic system Toolbox with cover Center beam protection A picture containing tree, outdoor, transport, yellow Description automatically generated Operators platform with ladder Block valve for telescopic support legs Operators platform with seat A picture containing floor, indoor, red, tool A picture containing tool, power saw Description automatically generated Description automatically generated Parking wheel Height adjustable parking leg Fuel tank holder with tank A picture...

Open the catalog to page 4
