HS EVOLUTION SYSTEM - ELEVATED

Product catalog summary
Specifications:
  • HS Evolution Gutter: Coated steel with dimensions 230x92x0.5mm, weight 1645 g/m. Available in 0.5 mm thickness for 3m support separation and 0.6 mm for 4m support separation.
  • HS Elevated Evolution Spacer: Made of polypropylene, dimensions 1000x235mm, weight 385 g.
  • HS Elevated Evolution Clip 16: Polypropylene, dimensions 50x30x9mm, weight 2 g.
  • HS Elevated Evolution Clip Without Ring: Polypropylene, dimensions 26x32x9mm, weight 1 g.
  • HS Elevated Evolution Out-Flow: Polypropylene, dimensions 222x130x135mm, weight 192 g.
  • HS Ground Support: Galvanized steel, weight 790 g.
  • HS Elevated Evolution Drain Outlet Pipe: EVA, diameter Ø38mm, weight 360 g/m.
  • HS Threaded M12x250mm: Galvanized steel, weight 180 g.
  • HS Tube 18x2x450mm: Galvanized steel, weight 370 g.
  • HS Nut M12: Galvanized steel, weight 10 g.
  • HS Evolution Hook S: Galvanized steel, weight 45 g.
  • Screws and Washers: Various types including HS M16 Inox. Screw, HS M6 Inox. Nut, HS M6 DIN 9021 Inox. Washer, and HS P-18 Inox. Mixed Washer.
  • HS Silicone: Silicone material.
Metal Gutter Measurements:
  • Coating: Face A with Z-275 + 6µm Primer + 20µm Polyester paint, Face B with Z-275 + 7µm Primer.
  • Maximum Load: 20 Kg/m evenly distributed.
Additional Components:
  • HS Stems Support: Galvanized steel, dimensions 505x135x6mm, weight 238 g.
  • HS End Support Vegetable: Galvanized steel, dimensions 340x222x158mm, weight 630 g.
  • HS Vertical End Support Vegetable: Galvanized steel, dimensions 608x260x8mm, weight 640 g.
See more

Catalog excerpts

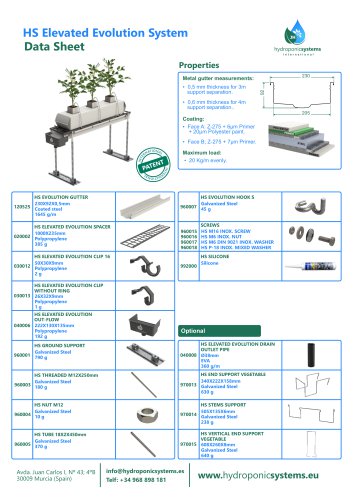

HS EVOLUTION SYSTEM - ELEVATED-1

PropertiesMetal gutter measurements:■ 0,5 mm thickness for 3m support separation.■ 0,6 mm thickness for 4m support separation..Coating:■ Face A: Z-275 + 6|jm Primer + 20jm Polyester paint.■ Face B; Z-275 + 7jm Primer.Maximum load:■ 20 Kg/m evenly. hydroponicsystems international Optional HS ELEVATED EVOLUTION DRAIN OUTLET PIPE HS END SUPPORT VEGETABLE 340X222X158mm Galvanized Steel 630 g HS STEMS SUPPORT 505X135X6mm Galvanized Steel 238 g Galvanized Steel Avda. Juan Carlos I, N° 43; 4°B 30009 Murcia (Spain)

 Open the catalog to page 1

All HYDROPONIC SYSTEMS INTERNATIONAL catalogs and technical brochures

  1. Traps and Rollertarps Catalogue
    Traps and Rollertarps Catalogue

    28  Pages

  2. Hydroponic Systems Full Catalogue
    Hydroponic Systems Full Catalogue

    28  Pages

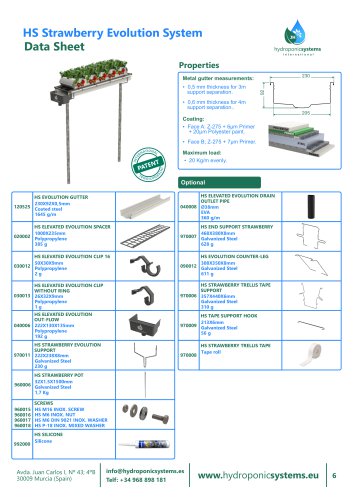

  3. HS EVOLUTION SYSTEM - STRAWBERRY
    HS EVOLUTION SYSTEM - STRAWBERRY

    1  Page

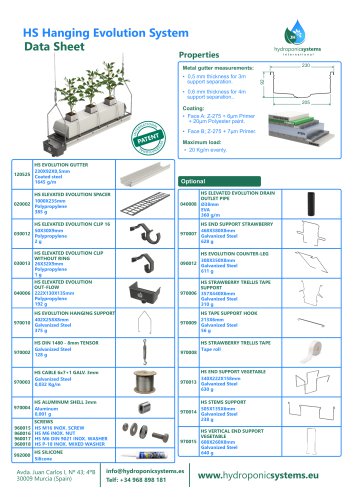

  4. HS EVOLUTION SYSTEM - HANGING
    HS EVOLUTION SYSTEM - HANGING

    1  Page

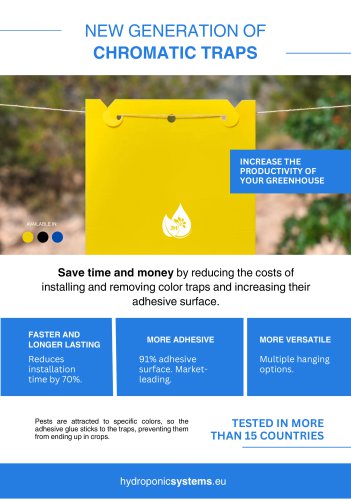

  5. folleto trampas hydroponic
    folleto trampas hydroponic

    2  Pages

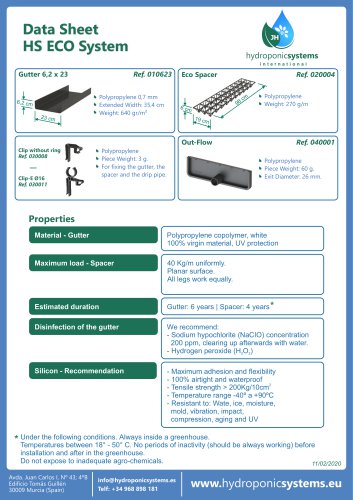

  6. HS ECO System
    HS ECO System

    1  Page

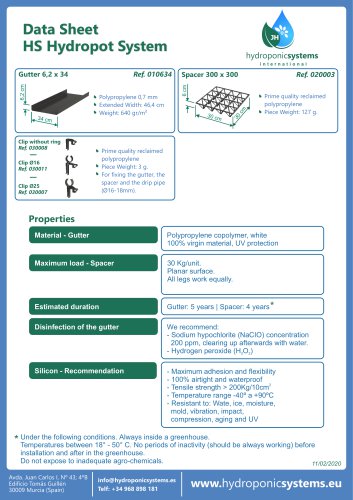

  7. HS Hydropot System
    HS Hydropot System

    1  Page

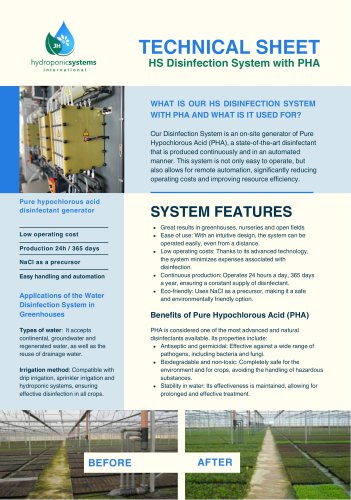

  8. Folleto A5 desinfeccion
    Folleto A5 desinfeccion

    2  Pages

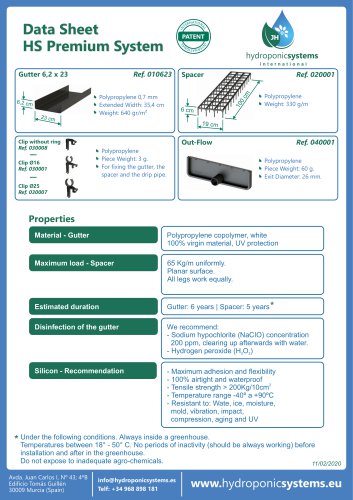

  9. HS Premium System
