Product catalog summary
Introduction
The document introduces Giorgio Cangini's advanced premium line of earthmoving equipment, highlighting vibration drives and multifunctional solutions for compaction and driving posts and sheet piles.
Specifications
  • PLURY W1 and W2 Models: Vibration drives for tonnage ranges from 1.2 to 40 tons.
  • Vibration Power: Options with one or two eccentric shafts for diverse applications.
  • Flow Control Valve: Stabilizes oil flow, ensuring compatibility with various machines.
Accessories
  • Multiplate and Roller: Double compactor plate and vibratory rollers for improved compaction.
  • Toorx and Tornado: Grass and forestry mulcher, and stump grinder for terrain management.
  • Vortex and Sheetpile Fix: Multifunction auger and vibratory sheet pile driver for versatile use.
Procedures and Recommendations
  • Quick Coupler System: Enables fast accessory changes, boosting efficiency.
  • Optional Kits: Includes pile extraction and hydraulic kits for equipment protection and enhanced functionality.
Technical Data
  • Hydraulic Fluid Flow Rate: Varies by model for optimal performance.
  • Vibration Frequency and Centrifugal Force: Specifics provided for effective operation.
Conclusion
The catalogue details specifications, accessories, and operational guidelines for the new premium line, emphasizing multifunctionality and adaptability.
Overview
The document outlines technical specifications and features of construction and forestry equipment, stressing the importance of matching data with machine capacity.
Equipment Features
  • Vibratory Rollers: Designed for compaction with reinforced structures, suitable for green areas and forestry.
  • Mulchers: High-strength for difficult terrain, ideal for land clearing.
  • Stump Grinders: Precise stump removal, compatible with loaders and excavators.
Performance and Applications
Equipment ensures high productivity on difficult terrain, with vibratory rollers and mulchers suited for green areas and forestry work.
Optional Features
Includes floating mounts and spray nozzle bar kits for enhanced versatility.
Key Considerations
Data is indicative and should be compared with machine capacity. Equipment aims to reduce wear, downtime, and maintenance costs.
Specifications
Details for models like the Swinging Front Stump Grinder and Multifunction Auger, emphasizing comparison with machine capacity.
Procedures
Instructions for equipment use, stressing compatibility and safety.
Standards and Recommendations
Data should be verified against machine capacity, with recommendations for hydraulic flow rates and pressure.
Spare Parts and Accessories
Details on spare parts kits and attachments, emphasizing correct part usage.
General Sales Information
Outlines sales conditions, emphasizing their binding nature and seller's rights.
Warranty Terms
Products are guaranteed defect-free for 12 months. Improper use voids warranty. Defects must be reported within 8 days.
Limitation of Liability
Seller not liable for contract breaches except for warranty issues or gross negligence.
Intellectual Property
Trademarks owned by Malaguti s.r.l., unauthorized use is a violation.
Personal Data Processing
Data processed according to Italian law and GDPR.
Applicable Law and Jurisdiction
Italian law applies to Italian buyers; otherwise, CISG applies. Disputes under Forlì Court jurisdiction.
General Provisions
Invalidity of any provision does not affect others. Modifications must be written. Italian version prevails in interpretation issues.
See more

Catalog excerpts

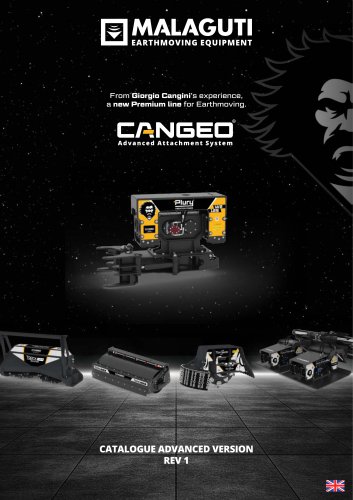

Catalogue Eng- Rev. 1 -1

From Giorgio Cangini’s experience, a new Premium line for Earthmoving. CATALOGUE ADVANCED VERSION REV 1

 Open the catalog to page 1
Catalogue Eng- Rev. 1 -3

ACCESSORI PLURY VIBRATION DRIVE 1.0 - 20.0 TONS VIBRATION DRIVE 6.0 - 40.0 TONS ACCESSORIES FOR VIBRATION DRIVES DOUBLE COMPACTOR PLATE FOR FRONT-MOUNTED MACHINES VIBRATORY ROLLERS FOR COMPACTION GRASS AND FORESTRY MULCHER STUMP GRINDER MULTIFUNCTION AUGER VIBRATORY SHEET PILE DRIVER

 Open the catalog to page 3
Catalogue Eng- Rev. 1 -4

THE ONLY MULTIFUNCTIONAL SOLUTION FOR COMPACTION AND DRIVING POSTS AND SHEET PILES. ADVANCED VERSION REV 1

 Open the catalog to page 4
Catalogue Eng- Rev. 1 -5

AVAILABLE FOR ALL OPERATING MACHINE TONNAGE RANGE VIBRATION POWER available with one or two eccentric shafts MULTIFUNCTION ACCESSORIES for compacting various types of ground and driving posts and sheet piles QUICK COUPLER for changing accessories quickly Flow control valve Stroke limiter Motor with HPS seal

 Open the catalog to page 5
Catalogue Eng- Rev. 1 -6

The flow control valve operates by limiting and stabilizing the incoming oil flow, so the attachment receives only the amount required to work under the correct operating conditions. This means that the same attachment can be installed on multiple excavators, loaders, or operating machines, without being strictly dependent on the specific hydraulic flow rate of each machine. OPTIONAL PILE EXTRACTION KIT Recommended to protect the anti-vibration mounts during the extraction of piles, sheet piles, etc. The data provided should be considered indicative and should be compared with the capacity of...

 Open the catalog to page 6
Catalogue Eng- Rev. 1 -7

7 The data provided should be considered indicative and should be compared with the capacity of the operating machine on which the equipment is used

 Open the catalog to page 7
Catalogue Eng- Rev. 1 -8

■ vibrating mass ■directional force ■ vibrating mass ■ directional force Radial vibration, the centrifugal force producted is radially distributed over 360° Sinusoidal vibration, it vibrates vertically from top to bottom, concentrating the centrifugal force in the centre PLURY with bolted equipment PLURY with equipment attached via quick coupler The data provided should be considered indicative and should be compared with the capacity of the operating machine on which the equipment is used

 Open the catalog to page 8
Catalogue Eng- Rev. 1 -9

COMPACTION accessories for PLURY 9 The data provided should be considered indicative and should be compared with the capacity of the operating machine on which the equipment is used VIBRO-DRIVING accessories for PLURY

 Open the catalog to page 9
Catalogue Eng- Rev. 1 -10

OPTIONAL POST EXTRACTION KIT Recommended for use to protect the anti-vibration mounts. PLURY tONS 1124 *0

 Open the catalog to page 10
Catalogue Eng- Rev. 1 -11

OPTIONAL POST EXTRACTION KIT Recommended for use to protect the anti-vibration mounts. PLURY TOW260621 0 ✓ The FLOW CONTROL VALVE limits and stabilizes the incoming oil flow, so the equipment receives only the amount required to operate under the correct conditions.

 Open the catalog to page 11
Catalogue Eng- Rev. 1 -12

12 The data provided should be considered indicative and should be compared with the capacity of the operating machine on which the equipment is used

 Open the catalog to page 12
Catalogue Eng- Rev. 1 -13

ADAPTER FOR QUICK COUPLING A ADAPTER FOR QUICK COUPLING B ADAPTER FOR QUICK COUPLING C ADAPTER FOR QUICK COUPLING D + E + F + G ADAPTER FOR QUICK COUPLING H + I + L Model. PLURY Model # Model. PLURY FIXED COUPLING MACHINE A W1 14 FIXED COUPLING MACHINE B W1 25 FIXED COUPLING MACHINE C W1 45 FIXED COUPLING MACHINE D + E + F + G W1 60 | W1 90 | W2 62 | W2 92 FIXED COUPLING MACHINE H + I + L W2 125 | W2 185 | W2 220 BOLTED PLATE MACHINE COUPLING BOLTED PLATE MACHINE COUPLING BOLTED PLATE MACHINE COUPLING BOLTED PLATE MACHINE COUPLING BOLTED PLATE MACHINE COUPLING Model # Model. PLURY Model. PLURY...

 Open the catalog to page 13
Catalogue Eng- Rev. 1 -14

MECHANICAL SLEWING Model # A mm B mm C mm Kg. Model. PLURY Model # A mm B mm C mm Kg. Model. PLURY HYDRAULICS SLEWING Model # A mm B mm C mm Kg. Model. PLURY 5 Hoses €

 Open the catalog to page 14
Catalogue Eng- Rev. 1 -15

The mechanical slewing ring can be mounted on the excavator arm with an oscillating configuration. Mechanical rotation allows the attachment to rotate on itself up to 210° in partial rotation. It allows the machine to rotate on itself 360° with continuous rotation. The rotor is supplied complete with hoses. The rotor can be mounted on the PLURY only with mechanically operated accessories. It cannot be used with hydraulically operated accessories. The hydraulic slewing ring can be mounted using the excavator coupling, allowing the attachment to rotate 360° on itself. 15 The data provided should...

 Open the catalog to page 15
Catalogue Eng- Rev. 1 -16

GRAPPLE - WOOD GRAPPLE WITH BELL Designed for vibrodriving and extracting wooden, concrete and steel posts. Suitable for landslide containment, embankments and riverbanks. Ideal for the construction of vineyards, orchards and fencing systems. A fundamental combination, widely used in land maintenance and agriculture GRAPPLE with directly welded TOK ADAPTER MACHINE COUPLINGS the GRAPPLE can be mounted directly on the machine without drive. OPTIONAL POST EXTRACTION KIT Recommended for use to protect the anti-vibration mounts. The data provided should be considered indicative and should be compared...

 Open the catalog to page 16
Catalogue Eng- Rev. 1 -17

HYDRAULIC KITS # Model. PLURY CABLE COIL Volt HYDRAULIC KITS 2 HOSES GRAPPLE 2 HOSES GRAPPLE 2 HOSES GRAPPLE 2 HOSES GRAPPLE Model. PLURY The data provided should be considered indicative and should be compared with the capacity of the operating machine on which the equipment is used

 Open the catalog to page 17
Catalogue Eng- Rev. 1 -18

KIT 1 KIT 2 Grapple accessory suitable for vibro-driving and extraction of concrete and steel poles. Pre-hole drill suitable for making a pre-hole in hard ground Suitable for vibro-driving concrete poles The data provided should be considered indicative and should be compared with the capacity of the operating machine on which the equipment is used

 Open the catalog to page 18
Catalogue Eng- Rev. 1 -19

KIT 4 Shock-absorbing rubber accessory suitable for vibrating concrete poles, avoiding damage to the pole itself Toothed plate mounted in place of the bell for vibratory driving of wooden piles of different diameters Replacement rubber pad for centering bell The data provided should be considered indicative and should be compared with the capacity of the operating machine on which the equipment is used

 Open the catalog to page 19
Catalogue Eng- Rev. 1 -20

H-BEAM CLAMP - H-BEAM VIBRO-DRIVING CLAMP Clamp designed for vibro-driving and extracting H-beams in various soil conditions. OPTIONAL FOR PILE EXTRACTION Recommended to protect the anti-vibration mounts. Sheet pile clamp with TOK adapter welded directly onto the clamp. H-BEAM CLAMP 20 GRIP D+E+F+G H+I+L Hydraulic Flow Model. PLURY 20 The data provided should be considered indicative and should be compared with the capacity of the operating machine on which the equipment is used
