PR 53

Product catalog summary

Product Description
PR53 is a line post system with hooks designed for viticulture, offering customizable spacing and a galvanized coating. Additional drilling can be requested.

Benefits

Reinforced hooks minimize crushing.
Facilitates installation and height adjustment of trellising wires.
Provides rigidity and stability suitable for mechanization.
Designed for challenging terrains.

Specifications

Length: 1.40m to 2.80m.
Material: S250GD or S250GD XCarb™.
Coating: Z275 or ZAM (Zinc, Aluminium, Magnesium).
Thickness: 1.5mm or 1.8mm.
Hooks: PR type 8.5 X 23mm with support, customizable spacing (minimum 70mm).
Hooks Position: Face to face.
Packaging: Bundles of 300 units.
Marking available upon request.

Productivity

Density, yield, and planting height are optimized for viticulture.

Accessories

Spreader: Keeps moving wires in a lower position during vine dormancy, saving time during lifting.
Post Cap: Protects the top of the post during installation.

Recommendations for Use

Use an appropriate post cap when installing with a post driver.
Recommended installation depth is 1/3 of the post length for optimal support.
Secure fixed wires by knocking hooks down with a hammer.
Maximum recommended interspacing is 5m.
For high acidity soils, ZAM coating is recommended.

Contact Information
SLPA®
Tel: +33(0)5 58 44 50 52
Fax: +33(0)5 58 44 55 75
Email: [email protected]
Website: www.slpa-acier.fr
Address: ZI Route d’Orthez, 740 Rocade Sud, 40700 Hagetmau, FRANCE

Catalog excerpts

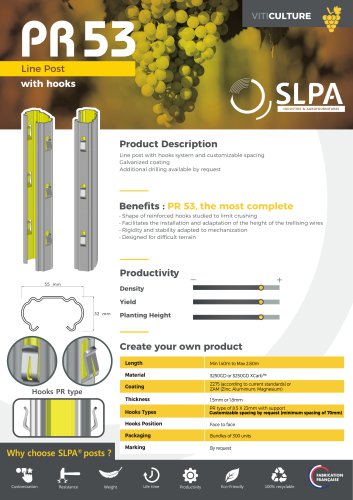

with hooks O.SLPA Product Description Line post with hooks system and customizable spacing Galvanized coating Additional drilling available by request • Shape of reinforced hooks studied to limit crushing • Facilitates the installation and adaptation of the height of the trellising wires • Rigidity and stability adapted to mechanization • Designed for difficult terrain Planting Height Create your own product Why choose SLPA® posts ?

Open the catalog to page 1

PR 53 Line Post with hooks Adapted to the post. The spreader allows you to keep the moving wires in a lower position when the vines are dormant. Save time during lifting. Adapted to the post, It protects the top of the post when pressing in. When installing posts with a post driver, make sure to use the appropriate post cap. In order to guarantee optimal support, the recommended installation depth is 1/3 length of the post. For securing fixed wires, knock the hooks down with a hammer. Recommended maximum interspacing : 5m. For high acidity soils, ZAM coating is recommended. ČTHN«Y«1FSIFNXJIJ5WTąQFLJ&HNJW...

Open the catalog to page 2

PR 53

PR 53
