TREE SHEAR

WATCH OUR STORY VIDEO BY SCANNING THE QR CODE. TMK ®STORY TMK Machinery Ltd is a family-owned company based in Hankasalmi, Finland which manufactures and sells TMK Tree Shears and TMK MultiGrabs worldwide. All the products and their respective attachments are designed based on our own know-how and customer feedback from the highest quality materials at our own headquarters and factory and can be paired with excavators, telehandlers and skid steers alike. The company was officially founded in 2013 when one man’s hobby started turning into a professional business. Everything was based on the original...

THE FIRST TMK 300 WAS INVENTED & PUT TO WORK "THERE MUST BE A BETTER WAY!” -TENHO KOPONEN HOBBY TURNED INTO A BUSINESS - TMK ENERGIAKOURA OY WAS BORN & ESTABLISHED TMK 200 & TMK 400 MODELS INTRODUCED IN ELMIA, SWEDEN TO COMPLIMENT THE TMK 300 TMK MULTIGRAB PRODUCT SERIES IS INTRODUCED TMK TREE SHEAR BECOMES TMK MACHINERY TMK 300 NEXT GEN & TMK GRAPPLE SAW LAUNCHED TMK FACTORY & HQ IS ESTABLISHED IN HANKASALMI, FINLAND TMK 150 & TMK 250 MODELS WERE INTRODUCED DURING 2022 OVER 6500 TREE SHEARS HAVE BEEN SOLD AROUND THE WORLD

TMK TREE SHEAR PRODUCT FAMILY The design of the TMK Tree Shear originates from our own forestry work and needs to be as efficient as possible even in the most challenging work conditions. To make this a reality the product needed to be easy to use, robust, reliable and productive. Thorough designing and engineering has resulted in the modern TMK Tree Shear which is efficient and easy to operate. In the manufacturing process we only trust in high resistant Hardox steel, which can endure hard wear and torsion. Combined with other top quality materials, Finnish craftsmanship and meticulously tested...

TMK ISO / TMH EDO Iff / TMH ESP / TMH 3D Den / TMH 400 1-3 tonnes (2200-6600 lb) Small cranes / tractors Small SUITABLE FOR: Excavator size Timber crane Skid steer / Wheel loader 2,5-8 tonnes (5500-18000 lb) Medium to large tractors Small to Medium Forwarders & large tractors Material Hardox® Hardox® Hardox® Hardox® Hardox® Weight without attachments 85 kg (190 lb) 185 kg (410 lb) 300 kg (660 lb)* 310 kg (685 lb) 650 kg (1435 lb) *Hanging Tilt included

TMK 150 COMPACT EFFICIENCY. Don’t let the cute looks fool you - this tree shear might look small and innocent on the outside, but in the inside it’s packed with tree clearing efficiency. Now you can equip your smaller machines from micro diggers to forest trailers into effective tree clearing machines. TMK 150 weight is limited to only 85 kg’s without a coupling plate and fits to the smallest of excavators starting from 1 ton. When equipped with the Hanging Tilt, the TMK 150 weighs a total of 120 kg and can be fit to pretty much any of the forest cranes. With just 180 bars of hydraulic pressure...

OPTIONAL ATTACHMENTS CHECK THE ATTACHMENTS FROM PAGES 28-43

STANDARD CYLINDER Smaller shear requires smaller cylinder, this special made cylinder makes sure that the shear works with smaller flow. Max. pressure: 180 bar // 2610 psi Recommended pressure: 180 bar // 2610 psi Flow: 40-100 l/min // 10,5-26 gal/min

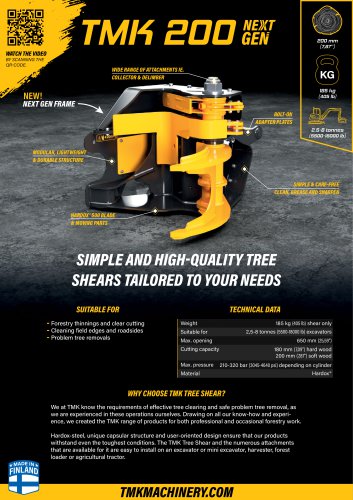

TMK 200 NEW KIND OF AGILITY. The small size and precisely designed structure of the TMK 200 makes it a great fit to mini excavators, skid steers and mini loaders. When combined with the Hanging Tilt or Adapter Linkage the TMK 200 turns into an effective and powerful tool for tractor cranes and forwarders. With the Next Gen update the Shear receives sturdier construction and revised geometry that make it more suitable for professional work. This powerhouse weighing only 185 kg can cut up to a 200 mm tree comfortably. Thanks to is lightweight and capsular structure the TMK 200 fits a wide range...

OPTIONAL ATTACHMENTS BRUSHGRAPPLE COLLECTOR DELIMBER STUMP SPRAY SOLID EXTENSION TILT EXTENSION LOADER EXTENSION HYDRAULIC EXTENSION ROTATOR HANGING TILT ADAPTER LINKAGE HEEL SPLITTING BLADE CHECK THE ATTACHMENTS FROM PAGES 28-43

STANDARD CYLINDER EXTRA POWER CYLINDER +7 KG (15 LB) This is what we started with in Europe. When your machine has around 300 bars of pressure, the normal main cylinder is the safest choice. When the first shears were tested abroad, we noticed that there wasn’t enough power. Pressure was often limited to 220 - 250 bars and the trees were harder, so the Bigger main cylinder was then added to handle the situation. Max. pressure: 320 bar // 4640 psi Recommended pressure: 280-320 bar // 4060-4640 psi Flow: 80-150 l/min // 21-39 gal/min Max. pressure: 250 bar // 3625 psi Recommended pressure: 220-250...

TMK 250 HANGING GREATNESS. TMK 250 was born out of necessity: for forwarders, forestry trailers and timber cranes. It’s a combination between TMK 200’s speed and TMK 300’s robustness, optimal for replacing a regular timber grapple with ease and cutting down max. 250 mm trees easily moving them around with the 165 degree tilting motion of the Hanging Tilt. You can also pair it with our Hydraulic Extension to gain up to 3,6 meters of extra reach with your excavator. TMK 250’s recommended hydraulic pressure is between 180-320 bars depending on the chosen cylinder

STANDARD CYLINDER EXTRA POWER CYLINDER +7 KG (15 LB) This is what we started with in Europe. When your machine has around 300 bars of pressure, the normal main cylinder is the safest choice. When the first shears were tested abroad, we noticed that there wasn’t enough power. Pressure was often limited to 220 - 250 bars and the trees were harder, so the Bigger main cylinder was then added to handle the situation. Max. pressure: 320 bar // 4640 psi Recommended pressure: 280-320 bar // 4060-4640 psi Flow: 80-150 l/min // 21-39 gal/min Max. pressure: 250 bar // 3625 psi Recommended pressure: 220-250...

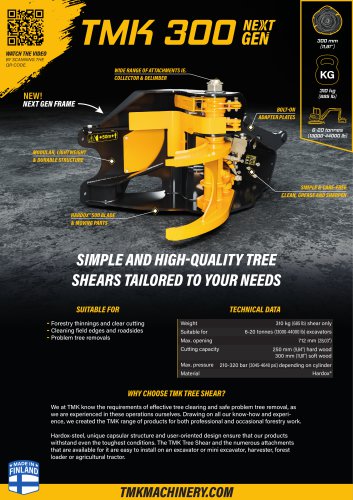

TMK 300 AUTHENTIC AND ORIGINAL. TMK 300 was the beginning of the TMK Product Family in 2009 and now it has the most versatile attachment selection of all guillotine tree shears making it one of the most popular shears on the global market. With the new Next Gen design, the TMK 300 is even stronger and more durable than before. TMK 300 fits a wide range of machines and customers from small scale users all the way to the professionals thanks to its high productivity and simple operating and controls. Base weight of a standard unit is kept as minimal as possible at 310 kg to fit even smaller machines...
