VEGA 45 TUB GRINDER
VEGA 45 TUB GRINDER
The Vega 45 is a moving-hoop tub grinder designed for shredding straw and corn stalk bales with a capacity of 4 tons per hour. It features a 45 kW fan motor and offers a shredding size adjustable between 0–10 cm. The hoop speed is set at 10 rpm.
Key Features
- Shredding and Directing: Efficiently shreds bales and directs the material through the machine output.
- Clean Environment: Produces less dust compared to blowing systems, enhancing animal health and operator comfort.
- Durability: Built with a reinforced heavy-duty body for long-lasting performance.
Technical Specifications
- Performance & Drive: Capacity of 4 t/h, fan speed of 1,200 rpm, and inverter-controlled fan and hoop motors.
- Body & Construction: Features a 10 mm base sheet, 4 mm side sheet, and 8 fan hammers. The chimney cap is movable up and down.
Why Choose Vega?
The Vega 45 simplifies bale shredding with its robust construction and innovative moving-hoop mechanism. It ensures low dust emissions, protecting both operator comfort and animal health. The machine's output is designed to guide shredded material precisely where needed.
Contact Information
For more information, contact Tosun Tarim at +90 232 512 63 34 or visit their website at www.tosuntarim.com. Address: Atatürk Mah. İstasyon Cad. No: 96, Tire, Izmir, Turkey.
Catalog excerpts

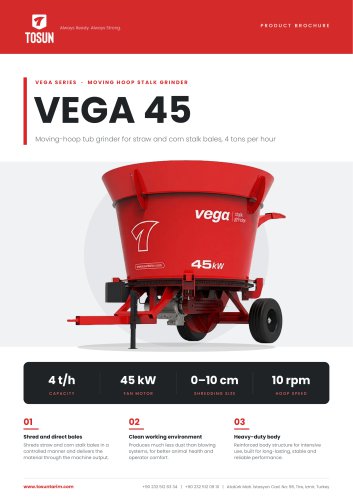

Always Ready. Always Strong. PRODUCT BROCHURE VEGA SERIES • MOVING HOOP STALK GRINDER Moving-hoop tub grinder for straw and corn stalk bales, 4 tons per hour 4 t/h 45 kW 0-10 cm 10 rpm CAPACITY FAN MOTOR SHREDDING SIZE HOOP SPEED 01 Shred and direct bales Shreds straw and corn stalk bales in a controlled manner and delivers the material through the machine output. 02Clean working environment Produces much less dust than blowing systems, for better animal health and operator comfort. 03Heavy-duty body Reinforced body structure for intensive use, built for long-lasting, stable and reliable performance.
Open the catalog to page 1
TECHNICAL OVERVIEW Technical specifications Side view Side view, opposite side PERFORMANCE & DRIVE BODY & CONSTRUCTION Capacity Shredding size Fan motor driver Hoop speed Hoop motor Hoop motor driver Body base sheet Body side sheet External type Panel type Up-down movable Chimney cap Base diameter Distance between supports SHREDDING SIZE Up-down movable BODY SHEETS External type Vega simplifies the toughest bale shredding jobs with its reinforced heavy-duty body and innovative moving-hoop mechanism. Low dust emission protects both operator comfort and animal health, and the machine output guides...
Open the catalog to page 2All TOSUN catalogs and technical brochures

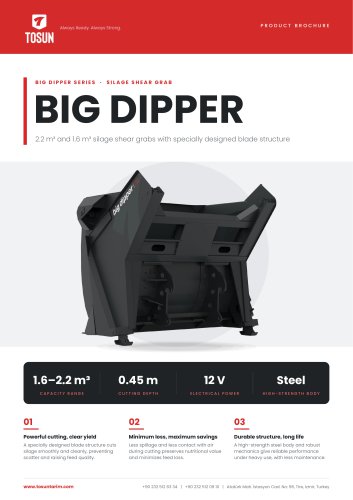

BIG DIPPER2 Pages
