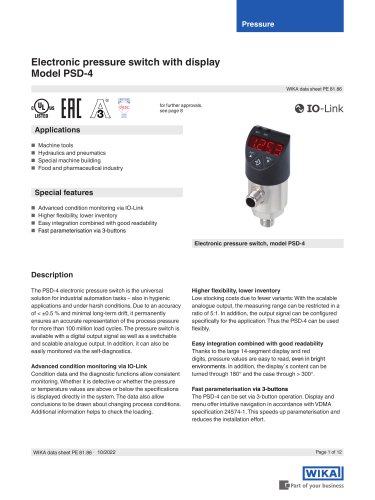

Electronic pressure switch with display Model PSD-4 WIKA data sheet PE 81.86 for further approvals, see page 8 @ IO-Link Applications■ Machine tools ■ Hydraulics and pneumatics ■ Special machine building ■ Food and pharmaceutical industry ■ Advanced condition monitoring via IO-Link ■ Higher flexibility, lower inventory ■ Easy integration combined with good readability Electronic pressure switch, model PSD-4Description The PSD-4 electronic pressure switch is the universal solution for industrial automation tasks - also in hygienic applications and under harsh conditions. Due to an accuracy of < ±0.5 % and minimal long-term drift, it permanently ensures an accurate representation of the process pressure for more than 100 million load cycles. The pressure switch is available with a digital output signal as well as a switchable and scalable analogue output. In addition, it can also be easily monitored via the self-diagnostics. Advanced condition monitoring via IO-Link Condition data and the diagnostic functions allow consistent monitoring. Whether it is defective or whether the pressure or temperature values are above or below the specifications is displayed directly in the system. The data also allow conclusions to be drawn about changing process conditions. Additional information helps to check the loading. Higher flexibility, lower inventory Low stocking costs due to fewer variants: With the scalable analogue output, the measuring range can be restricted in a ratio of 5:1. In addition, the output signal can be configured specifically for the application. Thus the PSD-4 can be used flexibly. Easy integration combined with good readability Thanks to the large 14-segment display and red digits, pressure values are easy to read, even in bright environments. In addition, the display's content can be turned through 180° and the case through > 300°. Fast parameterisation via 3-buttons The PSD-4 can be set via 3-button operation. Display and menu offer intuitive navigation in accordance with VDMA specification 24574-1. This speeds up parameterisation and reduces the installation effort. WIKA data sheet PE 81.86 • 10/2022 ^ Part of your business

1) Not available for process connection G V2 flush. 2) Not available for process connections G 1 hygienic and TRI-CLAMP® 1 V" and 2 WIKA data sheet PE 81.86 • 10/2022

Vacuum and +/- measuring ranges WIKA data sheet PE 81.86 • 10/2022

WIKA data sheet PE 81.86 • 10/2022

Signal type Analogue output Switching function Switch hysteresis Load Analogue signal 4 ... 20 mA Analogue signal DC 0 ... 10 V Signal damping Switching delay time Reset delay time Switching current Switching voltage Communication IO-Link Factory setting: 4 ... 20 mA (for version with switching option) IO-Link is optionally available for all output signal configurations. Factory setting: Hysteresis Factory setting: Normally open Switch point 1 and switch point 2 are independently settable ^ See operating instructions > max. output voltage/1 mA Configurable from 0 ... 65 s Configurable from 0...

Electrical connection 1) Depending on the configuration of the output signals

Options for specific media WIKA data sheet PE 81.8

Optional approvals Safety (e.g. electr. safety, overpressure, ...) Sanitary Standard This instrument is 3-A marked, based on a third party verification for conformance to the 3-A standard 74-07 (sensors and sensor fittings and connections). EHEDG 2) 3) European Community Hygienic Equipment Design EL class I, components for closed processes, cleaning with liquid: Cleaning in place (CIP) without dismounting 1) Not available with process connections G 1 hygienic and TRI-CLAMP® 1 VV and 2" 2) For process connection G 1 hygienic 3) For process connections TRI-CLAMP® 1 V" and 2". Manufacturer's information...

1) Not available with process connections G 1 hygienic and TRI-CLAMP® 1 V2" and 2" 2.2 test report per EN 10204 (technical version “oxygen service”) 3.1 inspection certificate per EN 10204 (e.g. confirmation of the class and indication accuracy, list of single measured values) Material proof for wetted metal parts FDA conformity of the system fill fluid Confirmation of 3-A conformity Confirmation of EHEDG certification Confirmation of surface roughness For approvals and certificates, see website WIKA data sheet PE 81.86 • 10/2022

EN 837, female thread, Ermeto-compatible EN 837, female thread 2) Welding sockets recommended as defined counter-thread (^ see accessories) With G 1 hygienic Wetted seals from EPDM or FKM ^ Suitable for WIKA adapter system model 910.61; see WIKA data sheet AC 09.20 ^ For dimensions of the appropriate process adapters and welding sockets, see WIKA data sheet AC 09.20 WIKA data sheet PE 81.86 • 10/2022

1) EHEDG conformity only in combination with a T-ring seal from Combifit Metaalbewerking B.V. 2) For maximum pressure range consider pressure rating of clamp. For further information, see WIKA data sheet DS 99.41 Other process connections on request. Order number Sealings WIKA data sheet PE 81.86 • 10/2022

Model Description Order number Welding socket for process connection G % B flush G % B female, outer diameter 50 mm [2 in], material 1.4571 Cooling element for screwing G Max. medium temperature 150 °C [302 °F] at an ambient 14109813 % female / G % male per EN 837 temperature of max. 30 °C [86 °F] (for instruments with process Max. operating pressure 600 bar [8,700 psi] connection G % B per EN 837) Max. medium temperature 200 °C [392 °F] at an ambient 14109815 temperature of max. 30 °C [86 °F] Instrument mounting bracket for PSD-4, aluminium, wall mounting Circular connector M12 x 1 with moulded...
